Make your home theatre come alive.

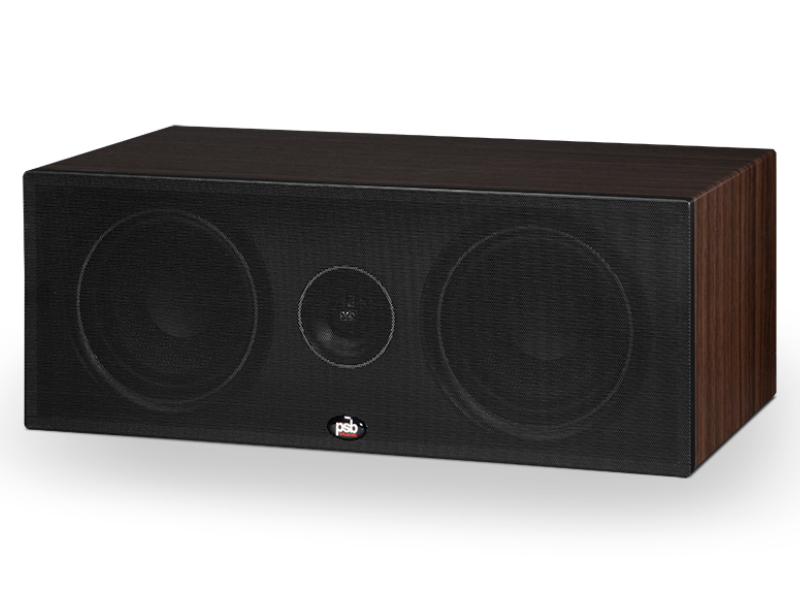

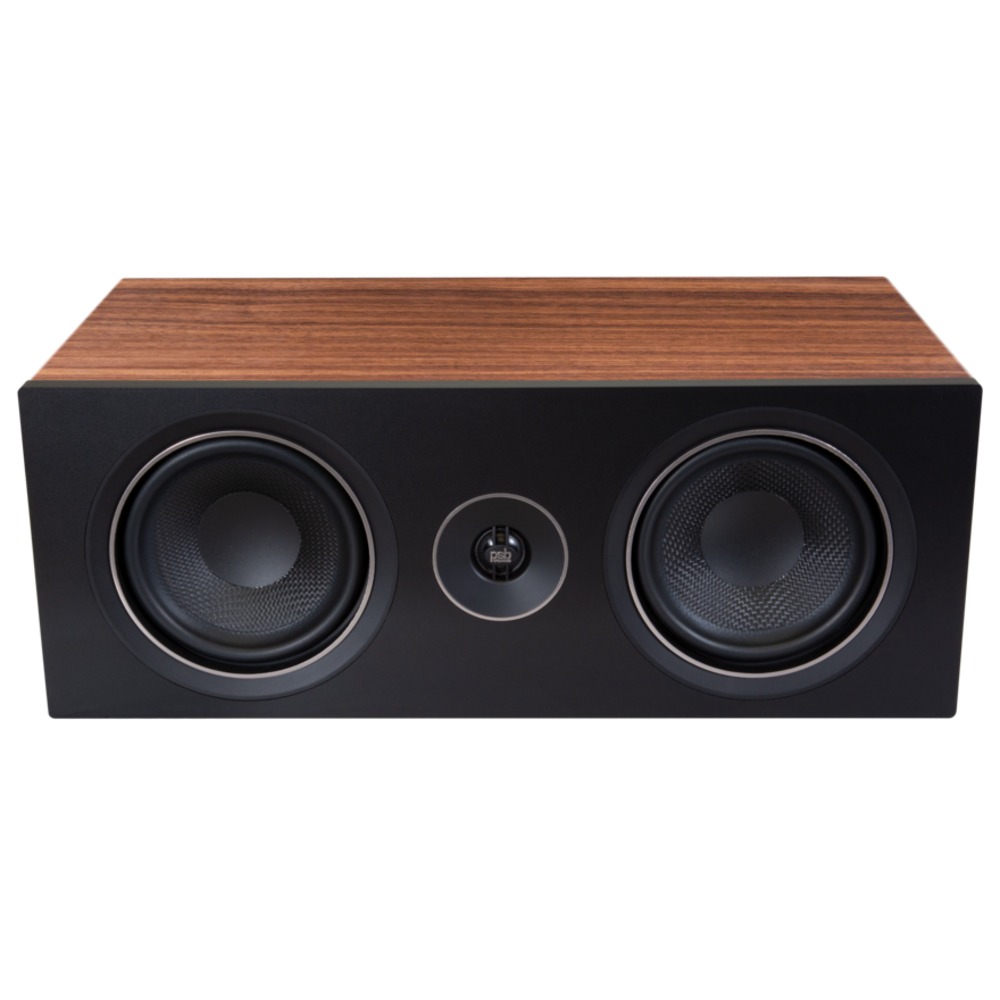

Leveraging the Alpha’s classic award-winning design, yet reimagined for the modern home theatre, the C10 is a must for a more immersive experience whether you’re streaming a movie, watching the big game, or enjoying your favourite show. With a black anodized aluminium dome tweeter, two 5¼” (133mm) custom woofers, and a rear-firing port, the affordable C10 delivers crystal-clear dialogue and cinematic sound that will bring movies to life. The high-quality MDF cabinet is finished in a beautiful woodgrain vinyl and can easily be set up under a TV for seamless integration with your home sound system no matter how you listen.
- ¾” (19mm) Black anodized aluminium dome tweeter with front waveguide
- Two 5¼” (133mm) Textured polypropylene woofers with rubber surround
Hear everything in full detail
The C10 uses a ¾” (19mm) black anodized aluminium dome tweeter to extend the high-frequency response further than any Alpha ever before, while lowering distortion to deliver a layered soundstage full of detail and clarity. Unlike lesser designs at this price, all the new Alpha Series tweeters employ ferrofluid cooling to prevent dynamic compression and a neodymium magnet for high sensitivity. The tweeter’s front waveguide and its unique placement below the woofer work together to smooth the response at the crossover and perfect on and off-axis performance.
Bring the cinema home
When paired with the Alpha Series’ newly designed tweeter, the C10’s custom 5¼” (133mm) woofer provides remarkable low-frequency response and the highest speaker efficiency in its class. The woofer is constructed from a special textured polypropylene compound that minimizes cone breakup and lowers distortion at full excursion. It’s also supported with dual layer voice coils and a bass reflex design that uses the rear-firing port tube to control the bass response down to room-shaking levels.
Matched to perfection
The Alpha Series’ new crossover exceeds speaker standards with a special custom design that does more than direct low and high frequencies to the individual drivers–it delivers the tightest control and the flattest frequency response. An unusually complex Acoustic Linkwitz-Riley filter design has also been incorporated into the crossover design to lower distortion and create a seamless soundscape in any type of two-channel setup or surround sound system.
Seamless home theatre integration
A unique combination of wall thickness and bracing controls resonances and provides a perfect platform for the C10’s driver components, while its internal damping material is from PSB’s flagship lines and has been positioned precisely for optimal effectiveness. Finished with a high-quality wood grain vinyl and magnetically attached grilles that are acoustically transparent, the C10 is perfectly designed to sit alongside your furniture and provide rich, detailed sound.
- ¾” (19mm) Black anodized aluminium dome tweeter with front waveguide
- Two 5¼” (133mm) Textured polypropylene woofers with rubber surround

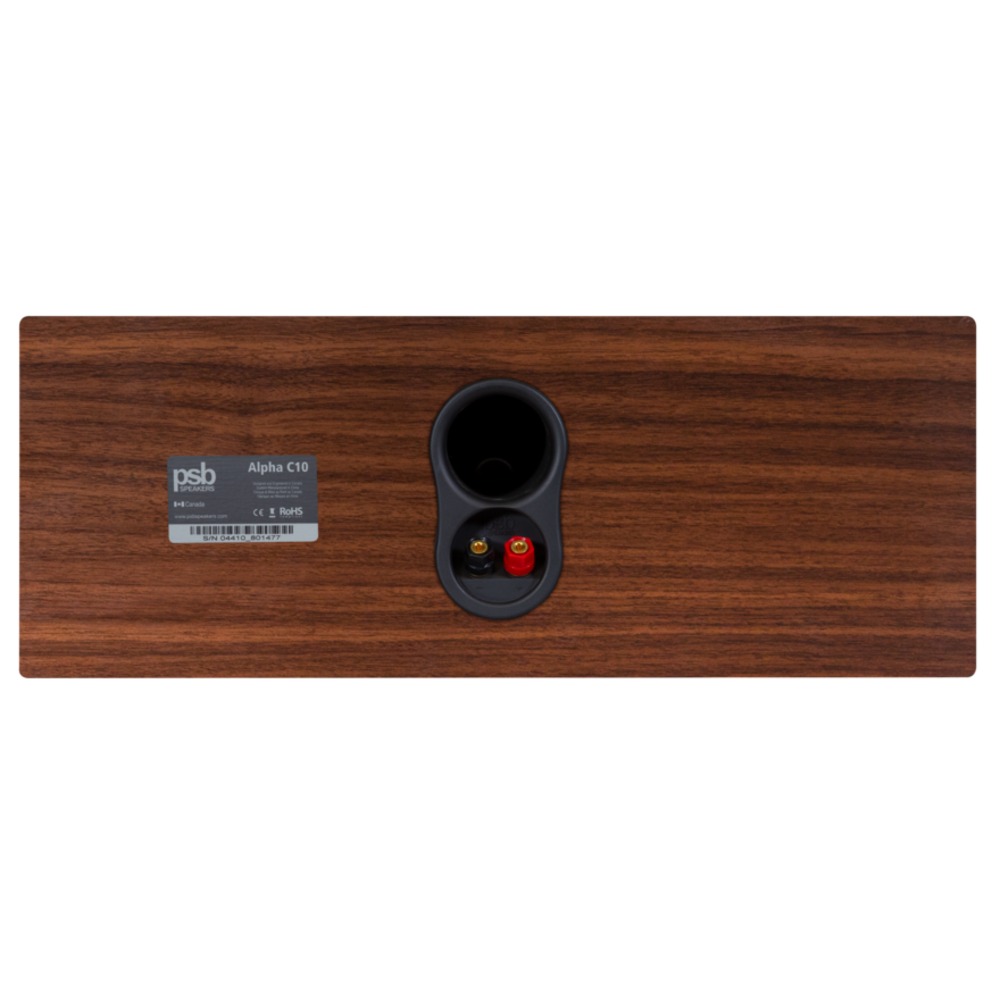

- Bass reflex cabinet design with a rear-firing port
- Acoustically-transparent detachable magnetic grilles
- Dual five-way gold-plated binding post speaker terminals
- High-quality woodgrain vinyl finish
- Available in Black Ash or American Walnut
Frequency Response | |
---|---|
On Axis @ 0° ±3dB | 55-21,000Hz |
On Axis @ 0° ±1 1/2dB | 65-20,000Hz |
Off Axis @ 30° ±1 1/2dB | 65-10,000Hz |
LF Cutoff -10dB | 37Hz |
Sensitivity | |
Anechoic Chamber | 88dB |
Listening Room | 90dB |
Impedance | |
Nominal | 8 Ohms |
Minimum | 6 Ohms |
Input Power | |
Recommended | 15 – 120 Watts |
Program | 60 Watts |
Acoustic Design | |
Tweeter (Nominal) | 3/4” (19mm) Black Anodized Aluminium Dome with Ferrofluid and Neodymium Magnet |
Woofer (Nominal) | 2 x 5 1/4” (133mm) Textured Polypropylene Cone with Rubber Surround |
Crossover | 2,500Hz, LR4 |
Internal Volume | 0.44 cu ft (12.5L) |
Design Type | Tuned Port Bass Reflex 2” (49mm) Rear Port |
Dimensions / Weights / Finish | |
Size (W x H x D) | 17 3/4” x 6 3/4” x 9 3/8”*, (450 x 170 x 243mm) |
Weight | 17lb (7.7kg), 19.9lb (9.0kg) |
Finish** | Black Ash, Walnut |
