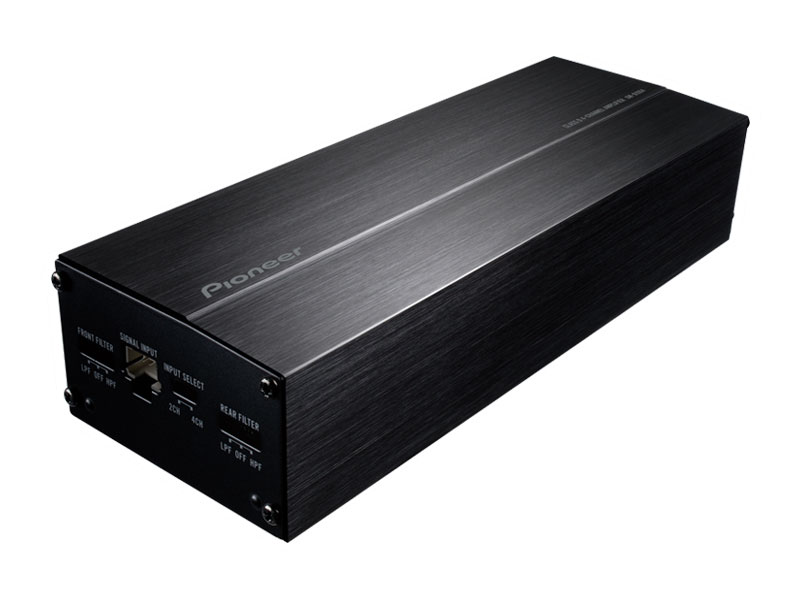

Pioneer Compact Class FD 4-Channel Amplifier GM-D1004
$ 198 99
WAS $21999
OR $ 33 17/mo
+ taxes/fees With 6 month financing |
We now offer financing powered by Apply Now
- 400 Watts Max Power
- Compact Design for Versatile Installation Options
- Refined Class FD Design Offers Extreme Efficiency and High-Quality Sound
Class FD Bridgeable 4-Channel Amplifier
COMPACT DESIGN
Whether you call it “compact” or “micro” the GM-D1004 will wear the name proudly. With the size equivalent to slightly smaller than a standard red brick, you’ll have no problem finding a place to mount it or conceal it behind our short chassis Digital Media Receivers stereos, glove box or even in the center console.
SMALL BUT POWERFUL
It may be small but don’t let the size fool you. The GM-D1004 is capable of delivering up to 400 Watts of maximum output and is more than comfortable providing 45 Watts of power per channel, that’s more than enough to improve the performance of your factory or aftermarket speakers.
VARITY OF INSTALLS
Today more and more music lovers are taking their music off-road and finding ways to enjoy their music recreationally. With the GM-D1004 you can add great sound to your motorcycle, ATV, or boat where a conventional size amplifier may not fit.
FLEXIBLE CONNECTIVITY
For DIYers, the GM-D1004 amplifier is not only small and powerful but it’s easy to install. Simply connect power and ground at the radio and get more installation flexibility using hi-level or low-level inputs with a signal sensing remote turn on so you can use it in combination with a factory or aftermarket headunit.
General | |
---|---|
Number of Channels | 4 |
Amplifer Class | Class FD |
Maximum Power Output | 400W |
Maximum Power Output at 2 | 100W x 4 |
Maximum Power Output at 4 | 100W x 4 |
Maximum Power Output - Bridged at 4 | 200W x 2 |
Nominal Power (RMS) Output at 2 | 45W x 4 |
Nominal Power (RMS) Output at 4 | 45W x 4 |
Nominal Power (RMS) Output - Bridged at 4 | 90W x 2 |
Frequency Response | 10 Hz to 40 kHz |
Total Harmonic Distortion (THD) | < 0.05% (1 kHz) |
Signal-to-Noise (SN) Ratio | 75 dB |
Fuse Rating | 15 Amps |
Specifications | |
RCA Inputs | 4-Ch. |
Speaker Level Inputs | Yes |
Crossover Type | LPF/HPF |
Low-Pass Crossover Frequency | 80 Hz (LPF/OFF/HPF) |
Low Pass Slope (dB/octave) | -12 dB/octave |
High-Pass Crossover Frequency | 80 Hz (LPF/OFF/HPF) |
High-Pass Slope (dB/octave) | -12 dB/octave |
Automatic Signal Sensing and Turn-On | Yes |
Terminal Type | Removable |
Load Impedance Allowance () | 1 to 8 |
Bridgeable | Yes |
MOSFET Output Selection | Yes |
Protection Control System | Yes |
Dimensions (WxHxD)(inches) | 7-1/8" x 1-1/2" x 2-1/2" |
Warranty | 1 Year |
