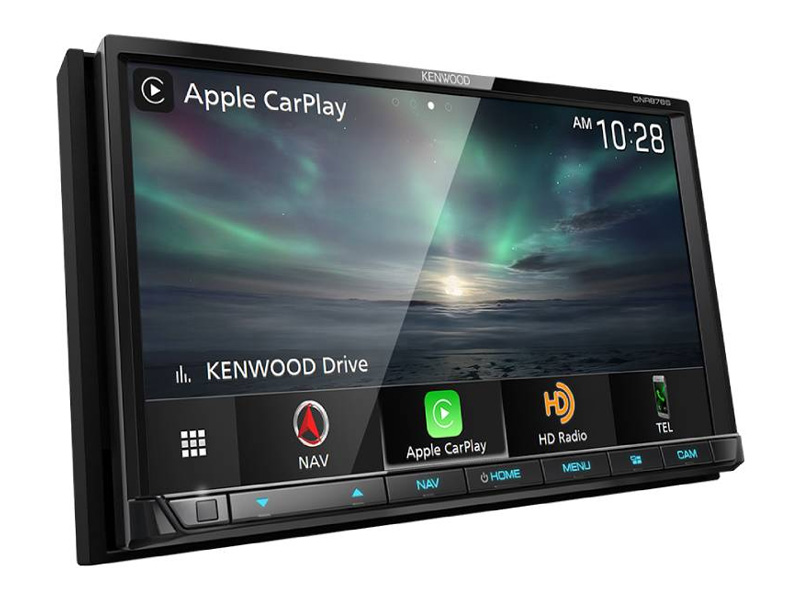

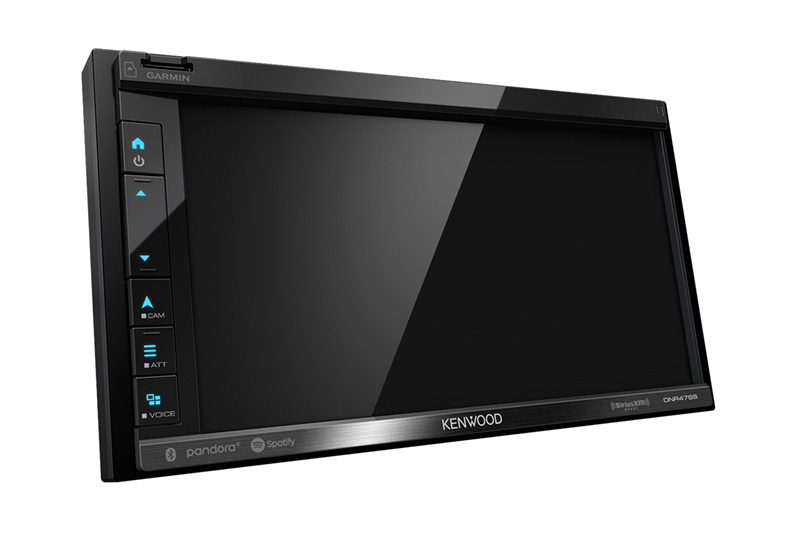

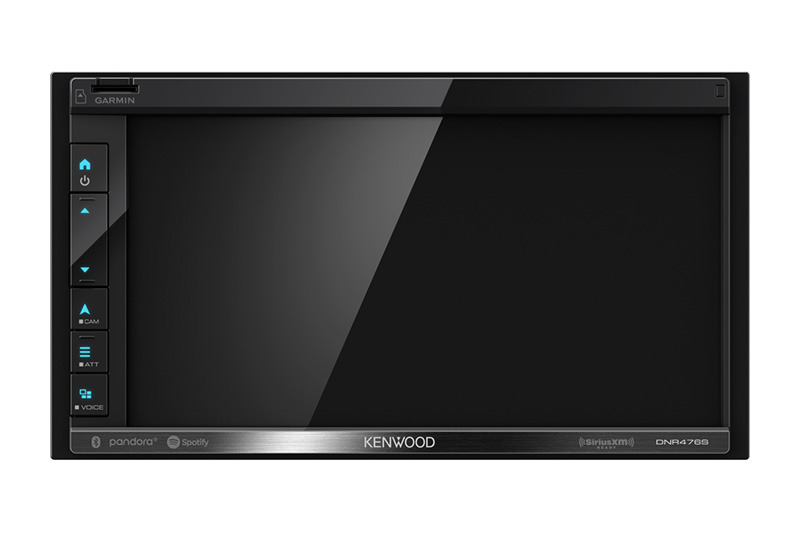

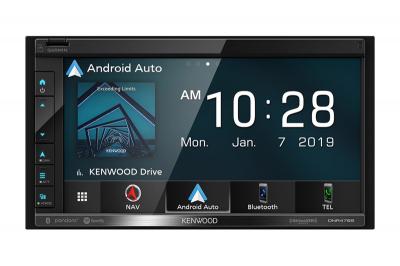

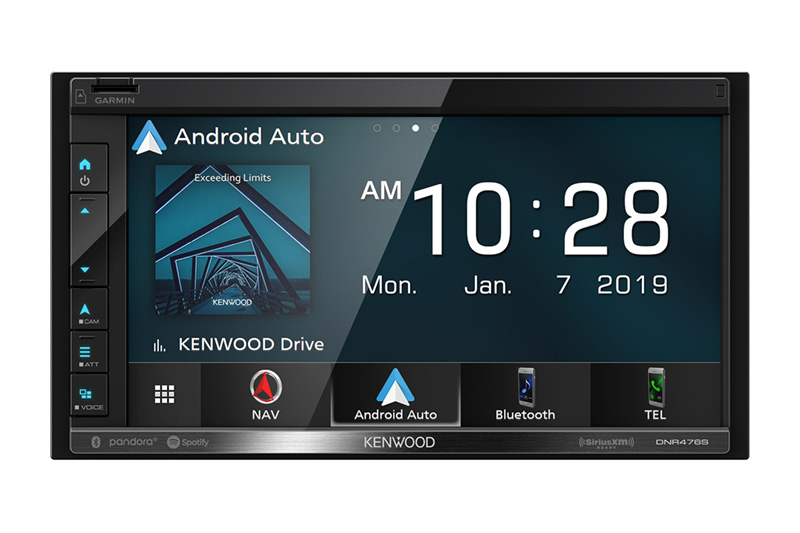

Kenwood Navigation Digital Multimedia Receiver with Bluetooth - DNR476S
$ 798 00
WAS $94799
OR $ 133 00/mo
+ taxes/fees With 6 month financing |
We now offer financing powered by
Apply Now
SAVE $149 - 6.8" WVGA Monitor
- Apple CarPlay® & Android Auto™ Ready
- High-Resolution Audio Ready
- Customizable Multi Widget Screen
- 3 Camera Inputs
- Built-in Bluetooth
- 3 Preouts 4V

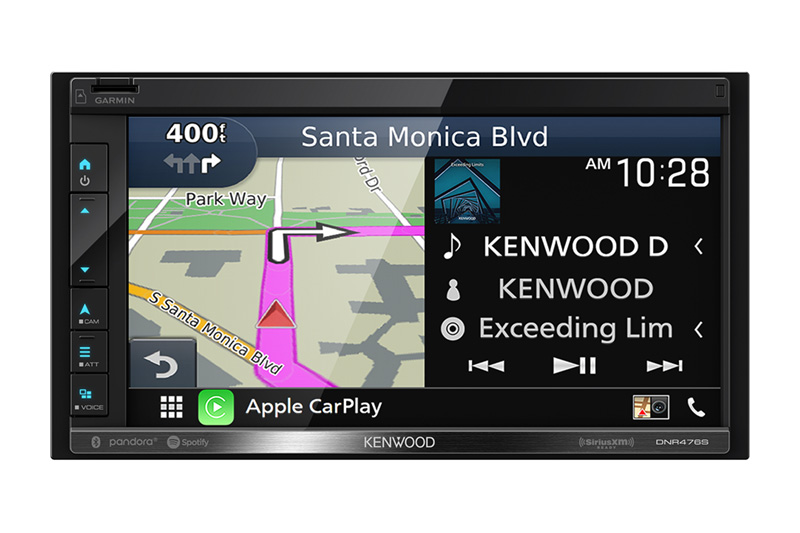

Advanced Navigation
Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier.
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Safe Driving
Keeping you safe on the road ahead is our top priority.
Customizable Multi Widget Screen
You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)
| Monitor Section | |
|---|---|
| Picture size | 6.75 inches(diagonal) wide |
| W x H | 151.8 mm x 79.68 mm, 5-31/32 x 3-1/8 inch |
| Display system | TN LCD panel |
| Drive system | TFT active matrix system |
| Number of pixels | 1,152,000 800H x 480V x RGB |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB striped arrangement |
| Back lighting | LED |
| USB I/F Section | |
| USB Standard | USB2.0 High Speed |
| File System | FAT 16/32, exFAT, NTFS |
| Maximum Power Supply Current | DC5V=1.5A |
| D/A Converter | 24/32Bit |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
| Frequency response - 192k Sampling | 20 - 88,000 Hz |
| Frequency response - 96k Sampling | 20 - 44,000 Hz |
| Frequency response - 48k Sampling | 20 - 22,000 Hz |
| Frequency response - 44.1k Sampling | 20 - 20,000 Hz |
| Total harmonic distortion 1kHz | 0.0001% |
| Signal to Noise ratio | 98.5dB |
| Dynamic range | 89dB |
| SD Section | |
| SD Standard | SD / SDHC / SDXC |
| Compatible File System | FAT 16/32, exFAT, NTFS |
| Capacity | Maximum 2T Byte |
| Data Transfer Rate | Maximum 25MB/sec |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
| Bluetooth Section | |
| Technology | Bluetooth Ver5.0 |
| Frequency | 2.402 – 2.480 GHz |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| Audio Codec | SBC / AAC |
| Multi Profile Support | Multi Profile |
| Profile | HFP (V1.7) (Hands Free Profile) SPP (Serial Port Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (V1.6) (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) |
| DSP Section | |
| Graphics equalizer - BAND | 13Band |
| Graphics equalizer - frequency (Hz) | (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k |
| Graphics equalizer - Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] |
| 2Way X'Over - HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] |
| 2Way X'Over - SLOPE | -6/-12/-18/-24[dB/Oct.] |
| 2Way X'Over - LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] |
| 2Way X'Over - SLOPE | -6/-12/-18/-24[dB/Oct.] |
| Position - Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) |
| Position - Gain | -8 to 0dB |
| Position - Subwoofer Level | -50 to +10dB |
| FM | |
| Frequency Range (Frequency step) | 87.9MHz - 107.9MHz (200kHz) |
| Usable sensitivity S/N30dB | 9.3dBf 0.8μV/75Ω |
| Quieting sensitivity DIN S/N 46dB | 10.2dBf 1.13μV / 75Ohms |
| Frequency response (±3.0dB) | 30Hz - 15kHz |
| S/N (dB) | 65dB (MONO) |
| Selectivity | Over 80dB (±400kHz) |
| Stereo separation | 45dB (1kHz) |
| AM | |
| Frequency Range (Frequency step) | 530kHz - 1700kHz (10kHz) |
| Usable sensitivity | 28dBμ |

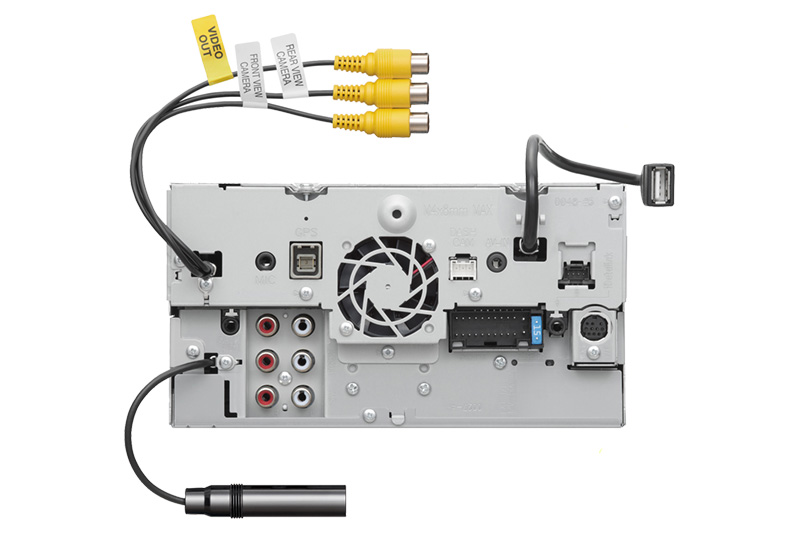

| Video | |
| Color system of external video input | NTSC/PAL |
| External video input level (Mini jacks) | 1 Vp-p / 75 Ohms |
| External audio max input level (Mini jacks) | 2 V / 25 kOhms |
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms |
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms |
| Audio Output level (Mini jacks) | 0.9 V / 10 kOhms |
| Connectivity | |
| Maximum Power Output (Front&Rear) | 50Wx4 |
| Typical Power Output (Front&Rear) | Full Bandwidth Power (at less than 1%THD) 22Wx4 |
| Output frequency band | 20 - 88,000Hz |
| Preout level (V) | 4V / 10kOhms |
| Preout impedance (Ω) | =< 300 Ohms |
| Speaker Impedance (Ω) | 4-8 Ohms |
| Navigation Section | |
| Receiver | High-sensitivity GPS receiver |
| Receiving frequency | 1575.42MHz (C/A code ) |
| Acquisition Times | Cold: 29 seconds(typ) All satellites at -130dBm Without aiding |
| Update Rate | 1/second, continuous |
| Accuracy | Position: < 2.5meters,CEP, at -130dBm |
| Accuracy | Velocity: 0.1meter/sec |
| Positioning Method | GPS |
| Antenna | External GPS Antenna |
| General | |
| Operating voltage | 12V DC Car Battery |
| Maximum Current consumption | 15A |
| Installation Dimensions WxHxD | 178mm x 100mm x 155mm 7-3/16 x 4-7/16 x 6-2/16 inch |
| (with Sleeve) | 182mm x 112mm x 153mm 7-3/16 x 4-7/16 x 6 inch |
| Operational temperature range | -10°C to +60°C |
| Weight Main unit | 1.7 kg 3.8 lb |
