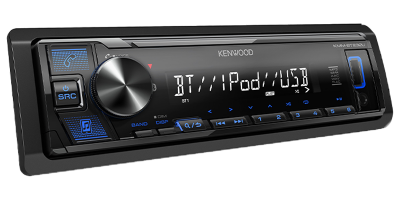

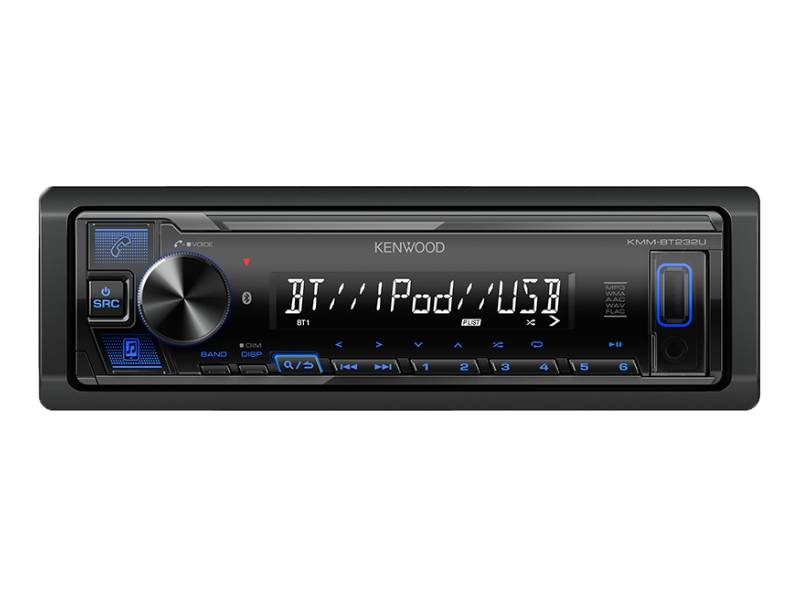

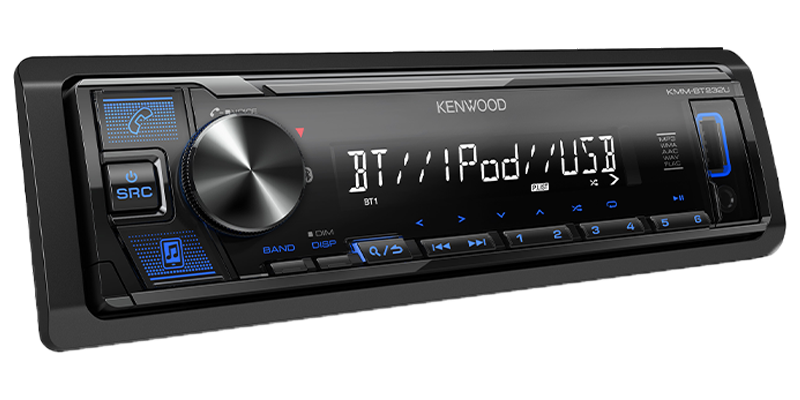

Kenwood Digital Media Receiver with Bluetooth - KMM-BT232U
$ 128 00
WAS $14900
OR $ 21 33/mo
+ taxes/fees With 6 month financing |
We now offer financing powered by
Apply Now

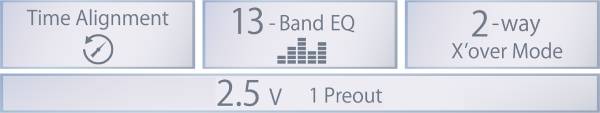

SAVE $21 - 205 Segment 1 Line Text Display
- Blue/White Color Illumination
- Bluetooth Direct Access button
- Short Chassis
- Front USB & AUX In
- 13 Band EQ & DTA
- 1 Preput 2.5V
Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Drive EQ
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.

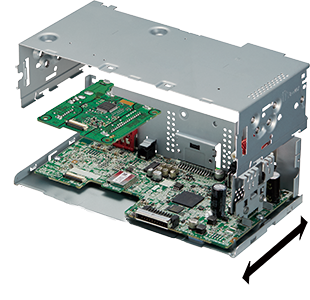

Short Chassis
With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Smartphone Connectivity
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

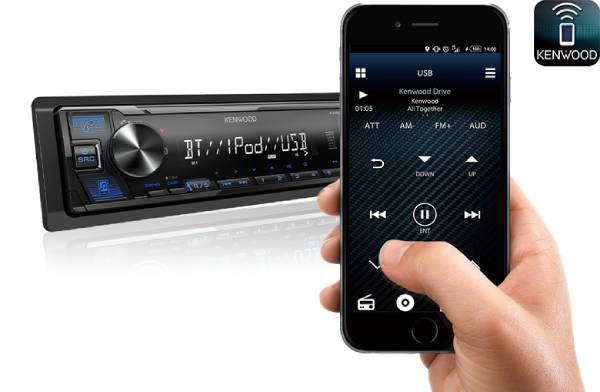

Control the Receiver from Your Smartphone with the KENWOOD Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.

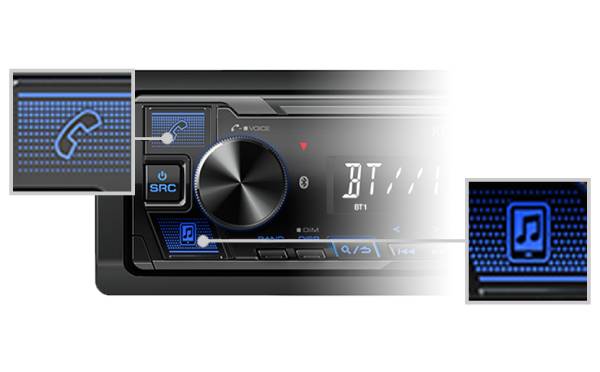

Designed for Ease of Use
Direct Bluetooth keys allow you to access quickly to answering to and making a call, and entering Bluetooth Audio source.

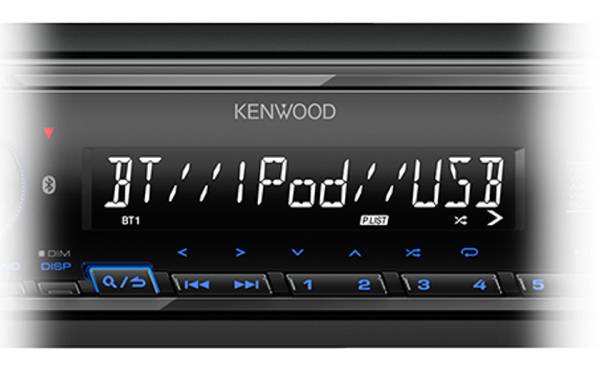

And Vertical Alignment LCD display secures higher visibility during day-time drive.
Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
The Best Audio Experience
13-Band EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

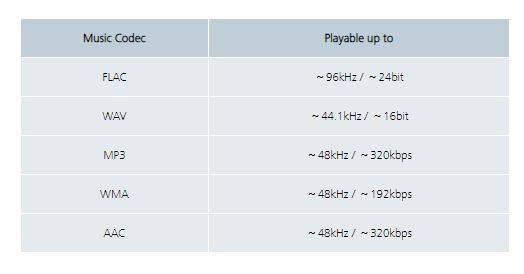

Playable USB Files
Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.

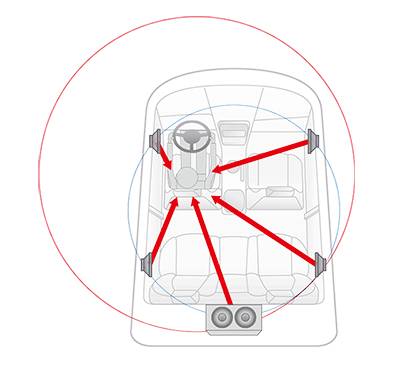

Digital Time Alignment
Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

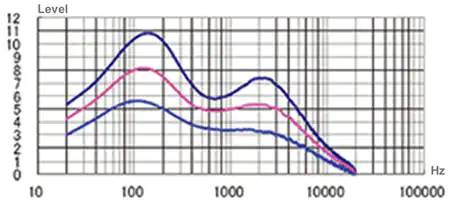

Drive Equalizer
Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

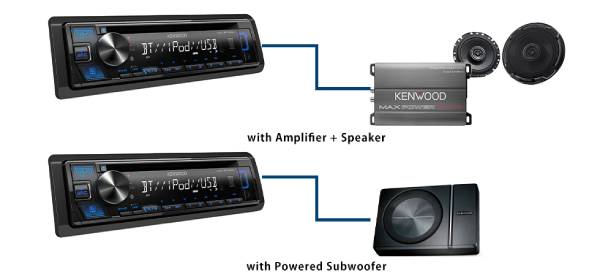

System EXPANSION Ready

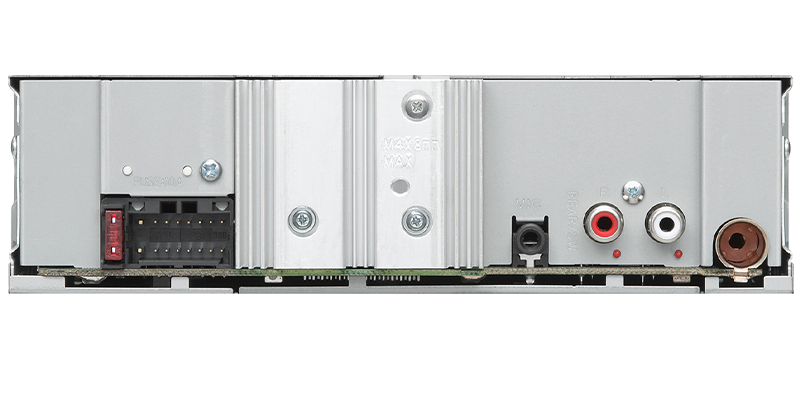

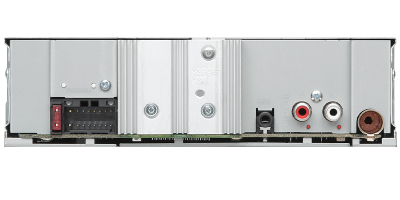

The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.
Additional Features
Short Chassis Design
With audio receivers shorter in depth, installation is made easier in a wider range of cars.
Spanish and French Text Display
On-screen display menu now available in Spanish and French.
| Bluetooth | |
|---|---|
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| Frequency Range | 2.402 to 2.480GHz |
| Profile | AVRCP 1.6.1 (Audio/Video Remote Control Profile) |
| Profile | A2DP (Advanced Audio Distribution Profile) |
| Profile | PBAP (Phonebook Access Profile) |
| Profile | SPP (Serial Port Profile) |
| Profile | HFP 1.7.1 (Hands Free Profile) |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| Version | Bluetooth 4.2 |
| USB I/F | |
| FLAC Decode | FLAC file (Up to 96kHz/24bit) |
| WAV Decode | Linear-PCM |
| WMA Decode | Compliant with Windows Media Audio |
| AAC Decode | AAC-LC ".aac",".m4a" files |
| USB | USB 1.1 / 2.0 High Speed |
| File System | FAT12 / 16 / 32 |
| Maximum Supply current | DC5V(DC logo) 1.5A |
| Frequency Response | 20Hz to 20kHz(±1dB) |
| S/N Ratio (dB) | 98dB(1kHz) |
| Channel Separation | 91dB |
| Dynamic Range | 93dB |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| GENE | |
| Operating voltage | 12V DC car battery |
| Installation Size(W) (H) (D) | 182(mm) 7-3/16(in), 53(mm) 2-1/16(in), 100(mm) 3-15/16(in) |
| Net Weight | 0.6(kg) 1.3(lbs) (Trim plate and Mounting sleeve: Included) |
| TONE | |
| Band12 | 10kHz ±9dB |
| Band13 | 16kHz ±9dB |
| Band11 | 6.3kHz ±9dB |
| Band9 | 2.5kHz ±9dB |
| Band10 | 4kHz ±9dB |
| Band8 | 1.6kHz ±9dB |
| Band6 | 630Hz ±9dB |
| Band7 | 1kHz ±9dB |
| Band5 | 400Hz ±9dB |
| Band3 | 160Hz ±9dB |
| Band4 | 250Hz ±9dB |
| Band2 | 100Hz ±9dB |
| Band1 | 62.5Hz ±9dB |
| AMP | |
| Full Bandwidth Power(at less than 1%THD) | 22Wx4 |
| PWR(MAX) | 50Wx4 |
| AUXInput | |
| Input Impedance | 30kΩ |
| Input Maximum Voltage | 1000mV |
| Frequency Response | 20Hz to 20kHz ±3dB |
| Speaker Impedance(Ω) | |
| Speaker Impedance(Ω) | 4 to 8Ω |
| Preout Impedance(Ω) | |
| Preout Impedance(Ω) | =<600Ω |
| Preout Level(mV)/Load | |
| -Unbalanced | 2500mV/10kΩ |
| MW(AM) | |
| Usable Sensitivity(S/N 20dB) | 29dBμ (28.2μV) |
| Frequency Range(kHz)(Frequency step) | 530kHz to 1700kHz(10kHz) |
| FM | |
| Stereo Separation | 40dB(1kHz) |
| S/N(dB) | 64.0dB(MONO) |
| Frequency Response(±3.0dB) | 30Hz to 15kHz |
| Quieting SensitivityDIN S/N:46dB | 17.2dBf(2.0μV/75Ω） |
| Usable SensitivityS/N:30dB | 8.2dBf(0.71μV/75Ω） |
| Frequency Range(MHz)(Frequency step) | 87.9MHz to 107.9MHz(200kHz) |
| Location | Stock |
|---|---|
| Brampton (Trinity Commons) | Yes |
| Kitchener | Yes |
| Mississauga | Yes |
| Newmarket | Yes |
| Scarborough | Yes |
| Toronto Leaside | Yes |
| Whitby | Yes |
| Woodbridge | Yes |
