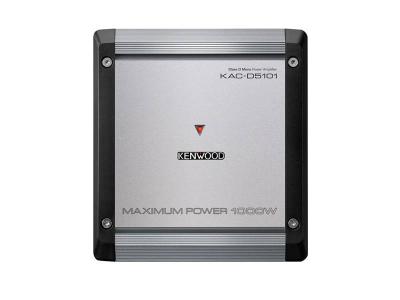

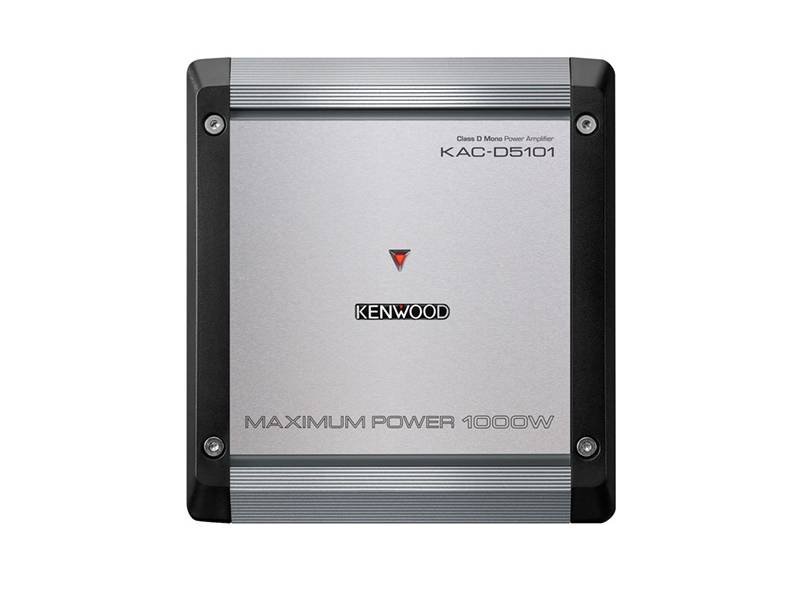

Kenwood Class D Mono Power Amplifier - KAC-D5101
$ 184 00
WAS $32799
OR $ 30 67/mo
+ taxes/fees With 6 month financing |
We now offer financing powered by
Apply Now
SAVE $143 - Max Power 1000W

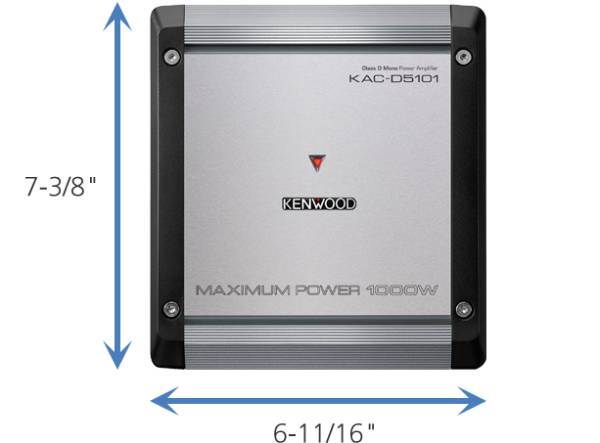

- Size (inch) (W) 6-11/16" x (H) 2-3/16" x (D) 7-3/8"
- Variable Low Pass Filter
- Bass Boost
Key Features
- CTA-2006 Compliant
- 2 Ohms Load Capability
- Speaker Level Input with Signal Sensing Turn-on
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design
D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system.

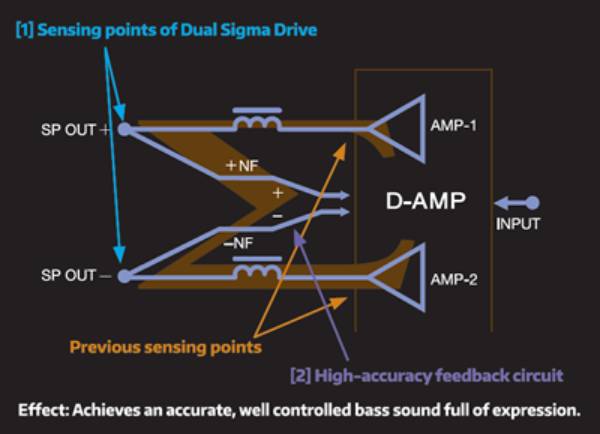

Dual Sigma Drive
This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.
Small Size Big Power
The KAC-D5101 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.

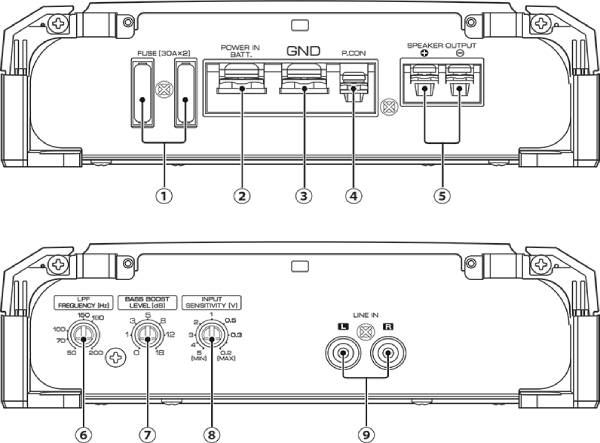

- Fuse (30A x 2)
- Battery Terminal (Power IN BATT.)
- Ground Terminal (GND)
- Power Control Terminal (P.CON)
- Speaker Output Terminals
- LPF Frequency Control
- Bass Boost Level Control
- Input Sensitivity Control
- Line In Terminal
| CTA-2006 Primary Ratings | |
|---|---|
| Power Output | 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N |
| Signal-to-Noise Ratio | 85dBA (Reference: 1Watt into 4Ohms) |
| Rated Power Output at 14.4V | |
| SUB (4 Ohms) | 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD) |
| SUB (2 Ohms) | 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD) |
| Specifications | |
| Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Frequency Response | 20Hz-200Hz (+0dB, -3dB) |
| Input Impedance | 10k ohm |
| Speaker Impedance | 4Ω (2Ω to 8Ω allowable) |
| Bridged Connection | - |
| Audio Section | |
| Low-Pass Filter | 50Hz-200Hz, -24dB/oct |
| Bass Boost | 40Hz, 0dB - +18dB |
| RCA Input Sensitivity | 0.2[V] - 5.0 [V] |
| Speaker Level Input Sensitivity | 4.0[V] - 12.0 [V] |
| High-Pass Filter | - |
| Terminals | |
| Battery & Ground | M6 Screw Type Terminal Block |
| Speaker Output | M4 Screw Type Terminal Block |
| General | |
| Dimensions(WxHxD) | 6-11/16 x 2-3/16 x 7-3/8 [inch] |
| Operating Voltage | 14.4V（11-16V allowable） |
| Current Consumption | 34 [A] |
| Maximum Power Output | |
| MAX POWER | 1000W |
| Location | Stock |
|---|---|
| Mississauga | Yes |
| Scarborough | Yes |
| Woodbridge | Yes |
| Brampton (Trinity Commons) | No |
| Kitchener | No |
| Newmarket | No |
| Toronto Leaside | No |
| Whitby | No |
